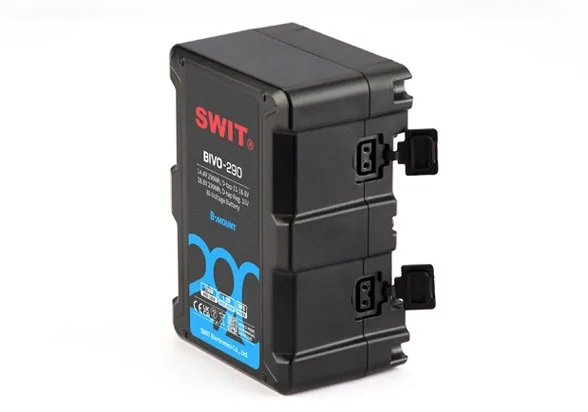

          Pin SWIT BIVO-290 290Wh Bi-voltage B-mount Battery Pack

›  14.4V/28.8V Bi-voltage B-mount

›  290Wh high capacity

›  250W constant high load

›  100W/3A fast charging

›  D-tap 11-16.8V output ×2

›  OLED power info display

›  Built-in LED torch

›  Strong 1.2m drop off proof

›  Multiple circuit protection

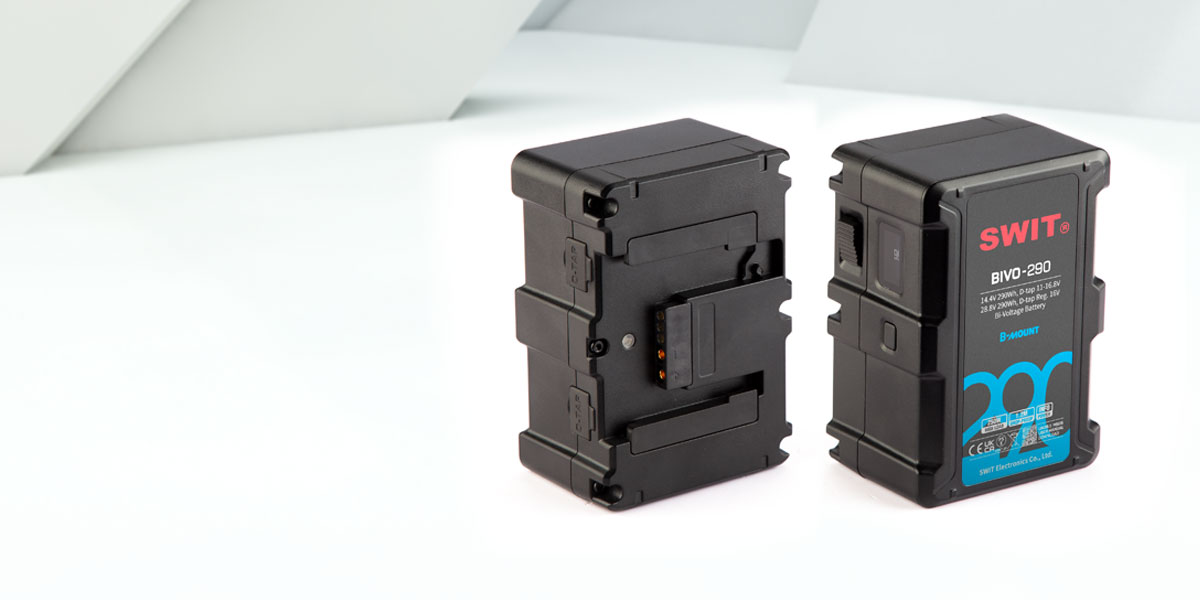

14.4V/28.8V Bi-Voltage
B-mount Battery

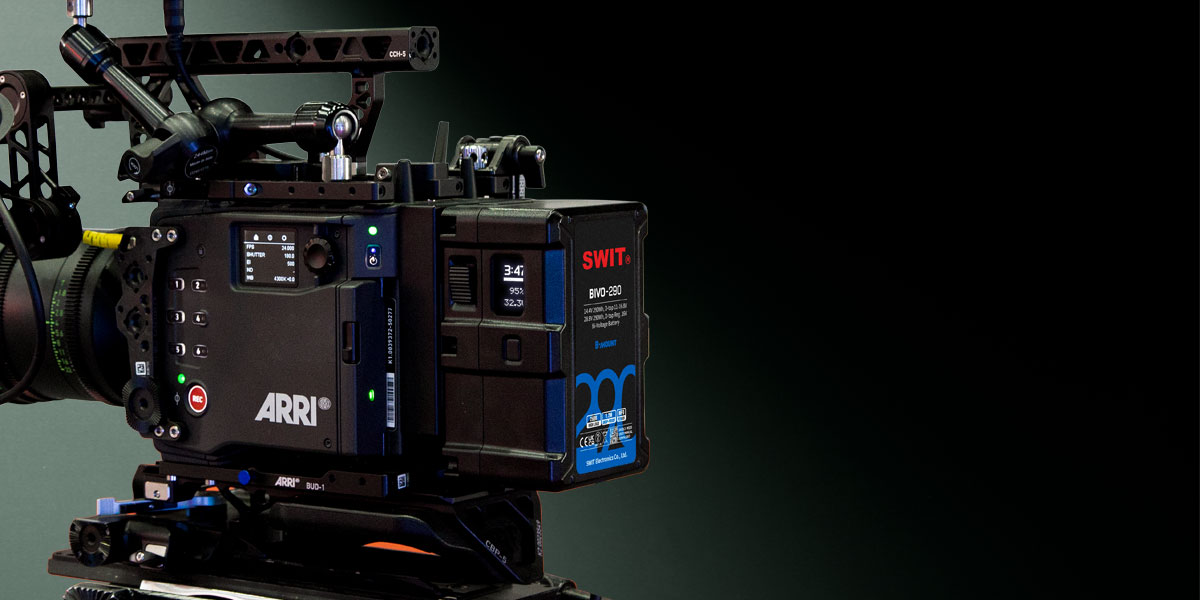

BIVO-290 is a 14.4V(10.8-16.8V) and 28.8V (21.6-33.6V) Bi-voltage B-mount battery, for ARRI cameras and various compatible with regular voltage cameras and cinegears.
The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.

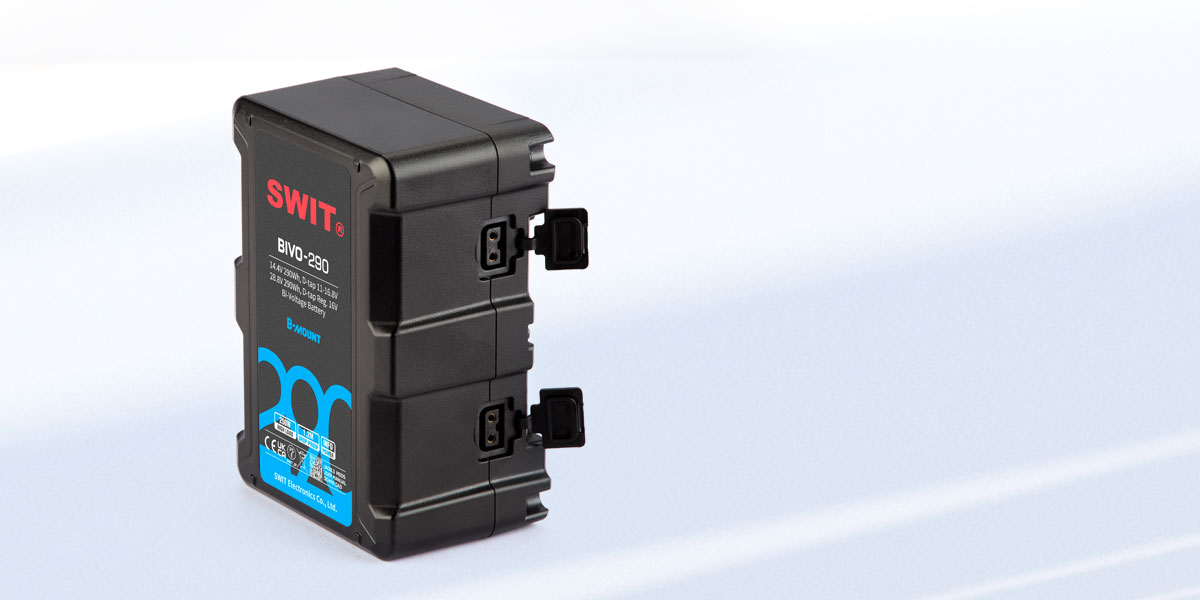

2x D-tap Power Output

BIVO-290 provides with 2x D-tap power sockets.
When the battery works at 14.4V voltage,
the D-tap outputs 11-16.8V;
When the battery works at 28.8V voltage,
the D-tap output regulated 16V,
to power all kinds of camera-top devices.

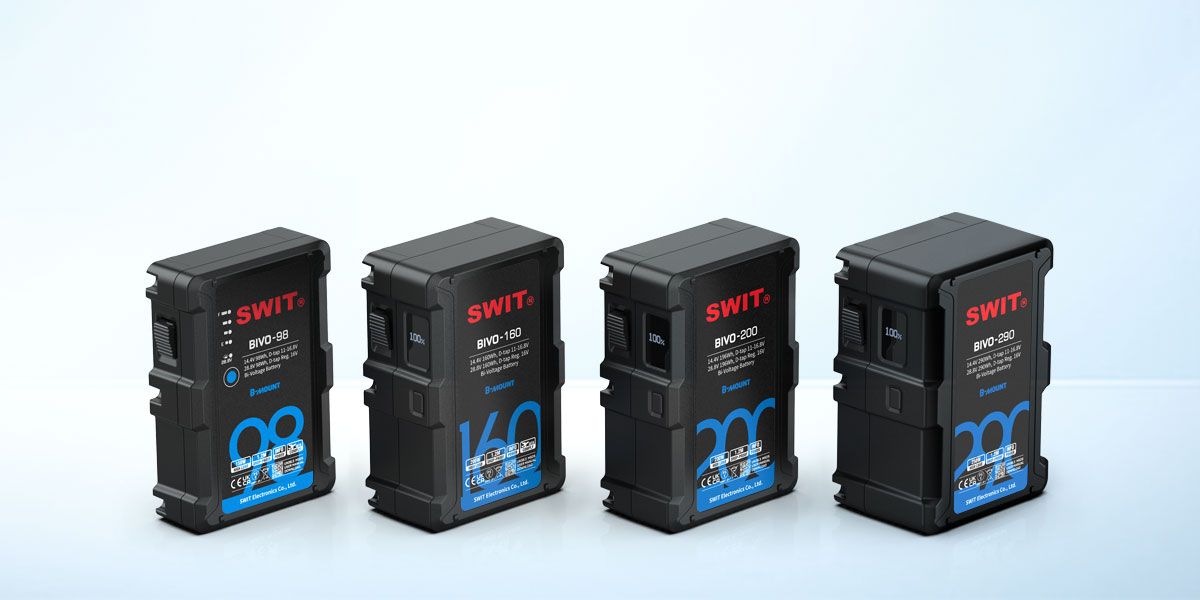

BIVO Series Family

The BIVO series Bi-voltage B-mount battery famaily has 98Wh, 160Wh, 196Wh, 290Wh, the different sizes and capacities, for stablizer handheld light weight or long time power selection.

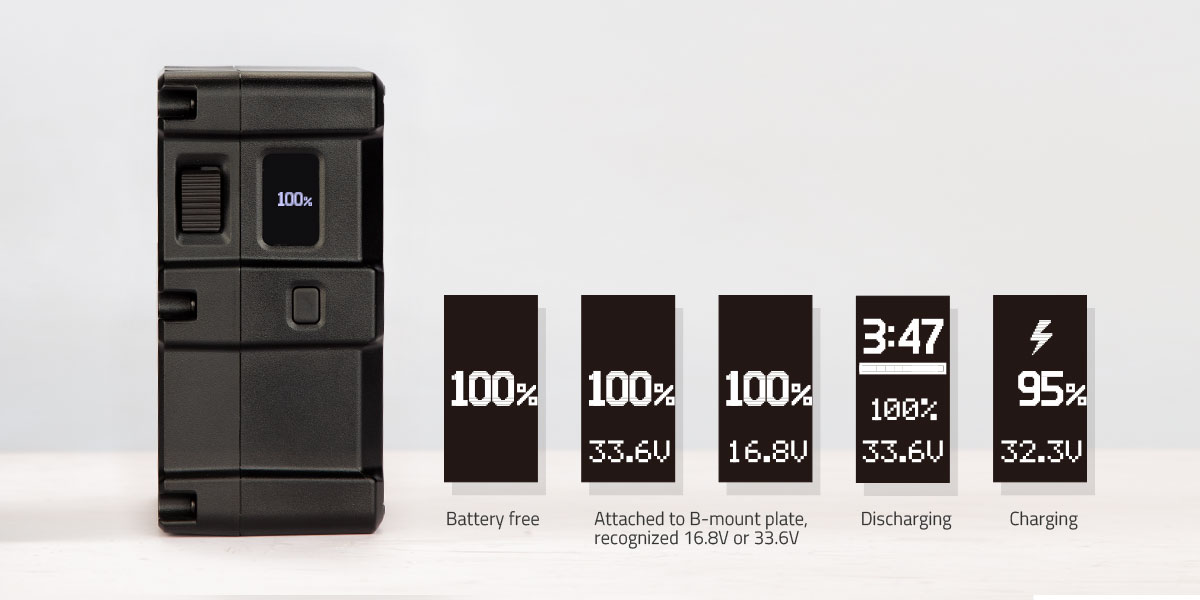

OLED Power Info Display

BIVO-290 battery provides an OLED screen to display battery status and power information, includes output voltage, power percentage, remaining running time, and protection warning code if any abnormal detected.

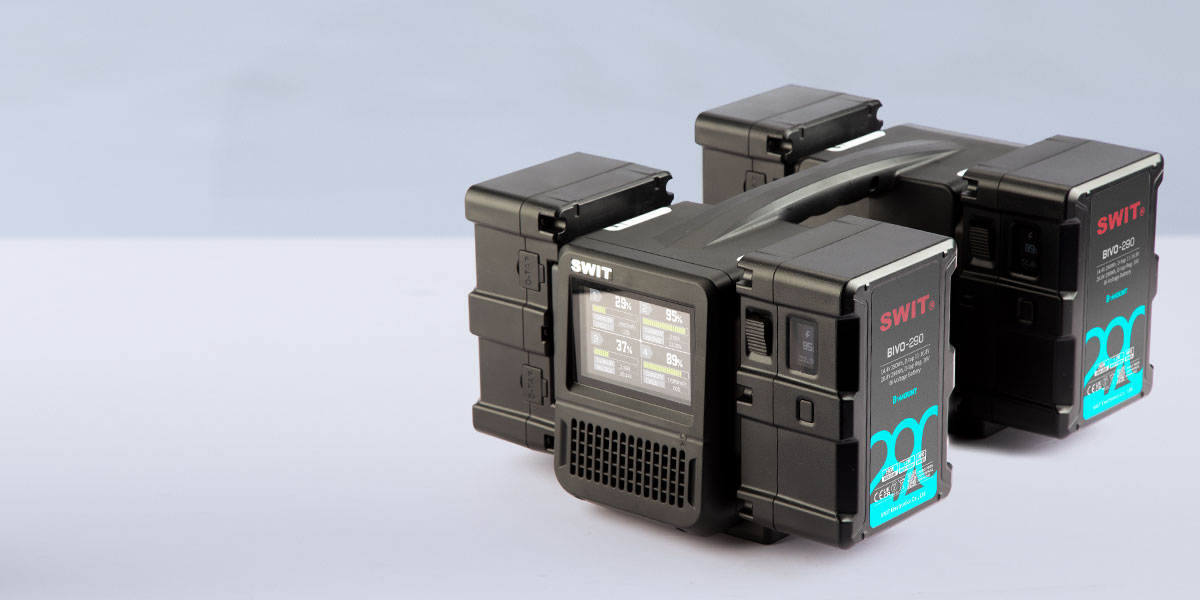

100W Super Fast Charging

You can charge 4x BIVO-290 simultaneously on SWIT PC-P461B B-mount charger, at 33.6V 3A, 100W super fast charging. The charger will take approx. 3 hours 50 minutes to fully charge 4x BIVO-290 batteries.

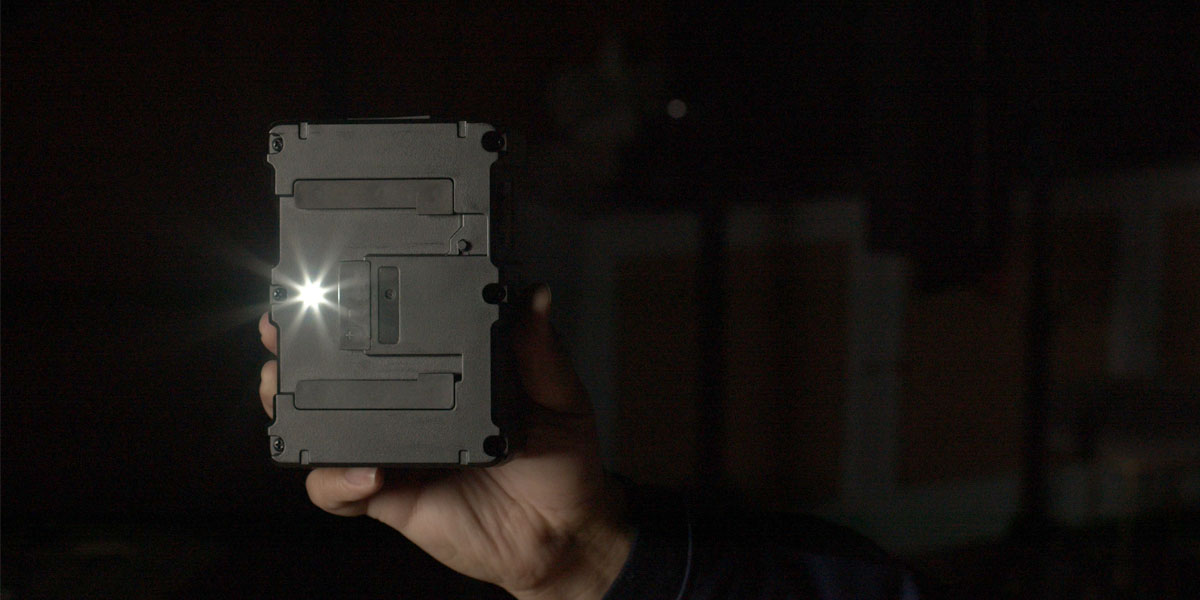

LED Torch

You can double press the Power Check button to switch on LED torch on the rear side of the battery, to help you to find B-mount plate in dark production environment.
Double press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds.

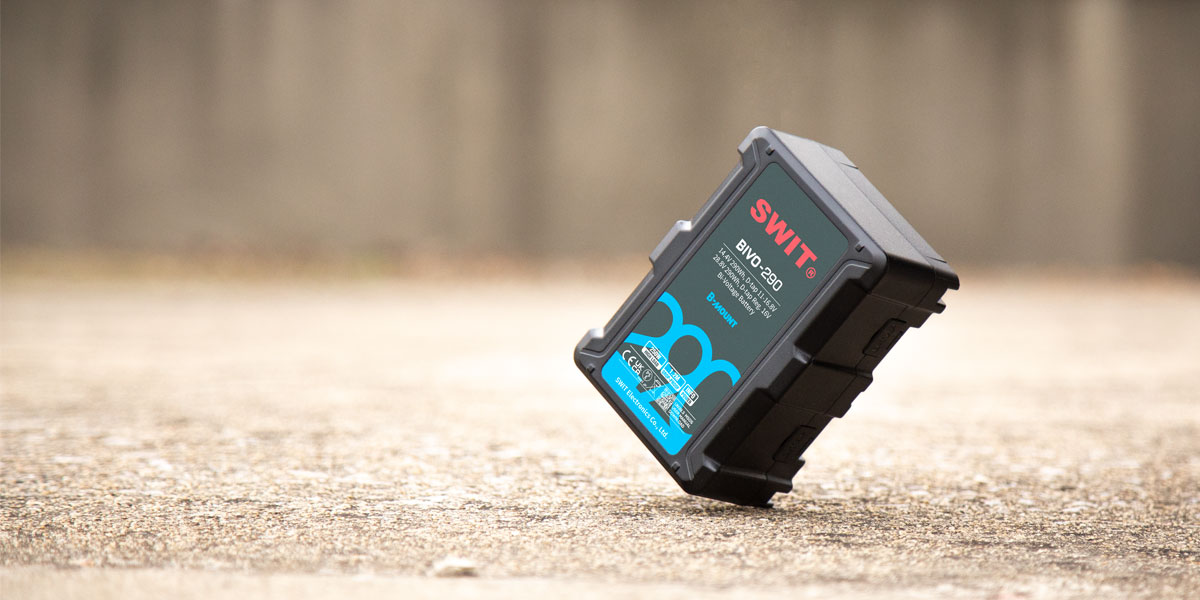

1.2 meters Drop-off Proof

BIVO-290 battery can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.
